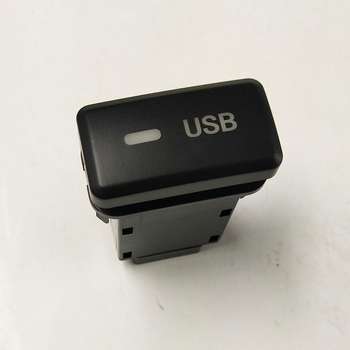

12V Auto car Laser Waterproof LED ON-OFF horizontal Push Button Switch Specificatiion Good ABS plastic material DC 12V-24V Face surface size: 40 mm x 20 mm With USB symbol. Horizontal switch for specific car. LED Color is Green. High quality single pole single throw ON-OFF push switch. Symbols on cover can be chosen in our catalogue or laser marking as per your request. Use the original mounting hole of the vehicle, lock into your existing panel, super easy to install in less than 10 min's.
Specifications FKD7 FK3L Rating DC9V,1A DC9V,1A Contact resistance 50mΩ MAX. 30mΩ MAX. Insulation resistance DC 500V 100MΩ MIN. DC 500V 100MΩ MIN. Dielectric strenght 1,000V rms @sea level 500V rms @sea level Operating force 2.8±0.8Kg 3.0±0.8Kg Operating temp -10℃ ~ +70℃ -10℃ ~ +70℃ Mechanical life 20,000 cycles 30,000 cycles 安全認証

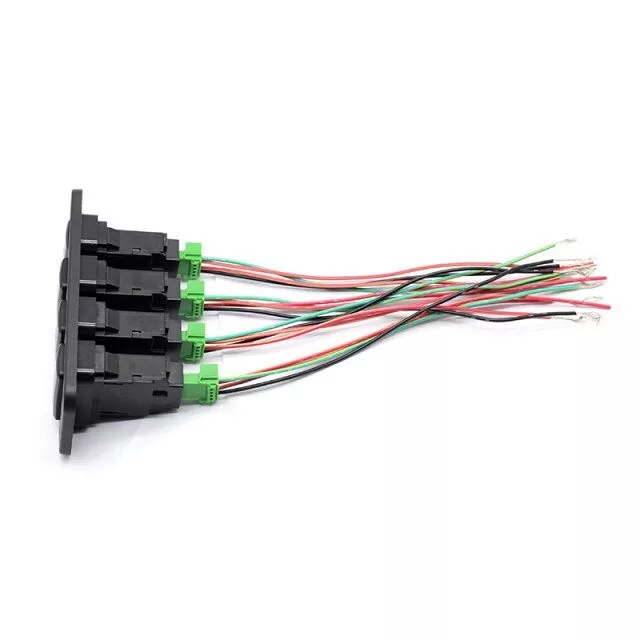

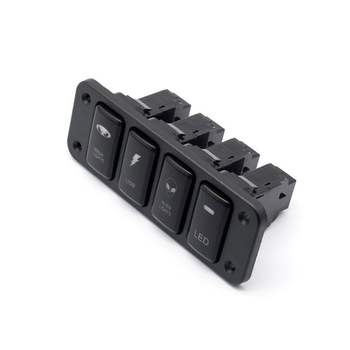

12V on off switch panel 4 gang LED Push Switch Panel for Auto Car To yota 40*20mm aftermarket parts This 12 volt push switch is a single throw ON - OFF switch designed to operate your 12 volt accessories. it has a face surface size of 1.54" x 0.83" (39 mm x 21 mm) and uses the original mounting hole of the vehicle. These Switches are an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.
12V on off switch panel 4 gang LED Push Switch Panel for Auto Car To yota 40*20mm aftermarket parts

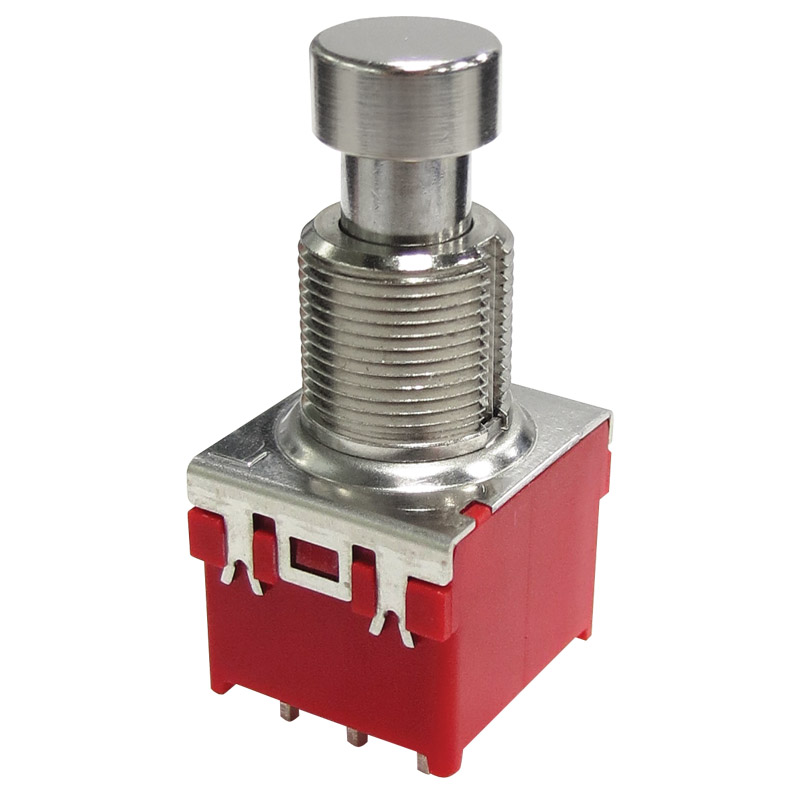

Operation:Lock,non-lock,interlock Timing:Shorting,non-shorting Multi-key type is available Illuminated type is available
Contact Rating:1A@120VAC or 28 VDC; 0.4VA max@ 20VAC OR DC max. Electrical Life:50,000 cycles Contact Resistance:20m max. Insulation Resistance:1,000M min. Dielectric Strength:1,500V RMS @sea level
Contact Rating:1A@120VAC or 28 VDC; 0.4VA max@ 20VAC OR DC max. Electrical Life:50,000 cycles Contact Resistance:20m max. Insulation Resistance:1,000M min. Dielectric Strength:1,000V RMS @sea level
