Products List
Dip Switches
  • PI_PM  Piano Type Dip Switches

    Piano Type Dip SwitchesSpecifications

    Contact Rating:25mA @24VDC(switching); 100mA @50VDC(non-switching) Electrical Life:2,000 operations min. Contact Resistance:50m max. Insulation Resistance:100M min. Operation Force:800gf max. Circuit:SPST

  • Rotary  Rotary Type Dip Switches

    Rotary Type Dip SwitchesSpecifications

    Through Hole,Right Angle,SMT types are available, Contact Rating:25mA @24VDC(switching); 100mA @50VDC(non-switching) Electrical Life:2,000 operations min. Contact Resistance:100m max. Insulation Resistance:100M min.

  • NDI,DM  Machine Insertable Type Dip Switches

    Machine Insertable Type Dip SwitchesSpecifications

    Contact Rating:25mA @24VDC(switching); 100mA @50VDC(non-switching) Electrical Life:2,000 operations min. Contact Resistance:50m max. Insulation Resistance:100M min. Dielectric Strength:500VAC/1 min Operation Force:1,000gf max. Circuit:SPST

  • DS  Standard Type Dip Switches

    Standard Type Dip SwitchesSpecifications

    Slide,Right Angle,Piano types are available. Contact Rating:25mA @24VDC(switching); 100mA @50VDC(non-switching) Electrical Life:2,000 operations min. Contact Resistance:50m max. Insulation Resistance:100M min.

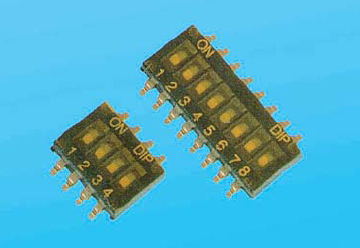

  • NHDS  Half Pitch Type

    Half Pitch TypeSpecifications

    Contact Rating:25mA @24 VDC(switching Rating) 100mA @50VDC(non-switching Rating). Electrical Life:1000 operations min. @24VDC,25mA Contact Resistance:100 mΩ max. initial Insulation Resistance:100MΩ min.@100VDC Dielectric Strength:300V AC/1min Opetation Force:500gf Operating Temperature:-40℃to+85℃ Circuit:spst

A total of 5 records   page: 1/1  page: 8 records  1
